We supply FFKM O-rings and support compound selection and application review. Start with your drawing, dimensions, existing material reference or operating conditions.
FLUID manufactures custom sealing products and provides material selection and seal design support. For FFKM requirements, we review the proposed material, seal geometry and application conditions together before confirming a supply option.
Initial response within 12 hours.
01 / FFKM SELECTION

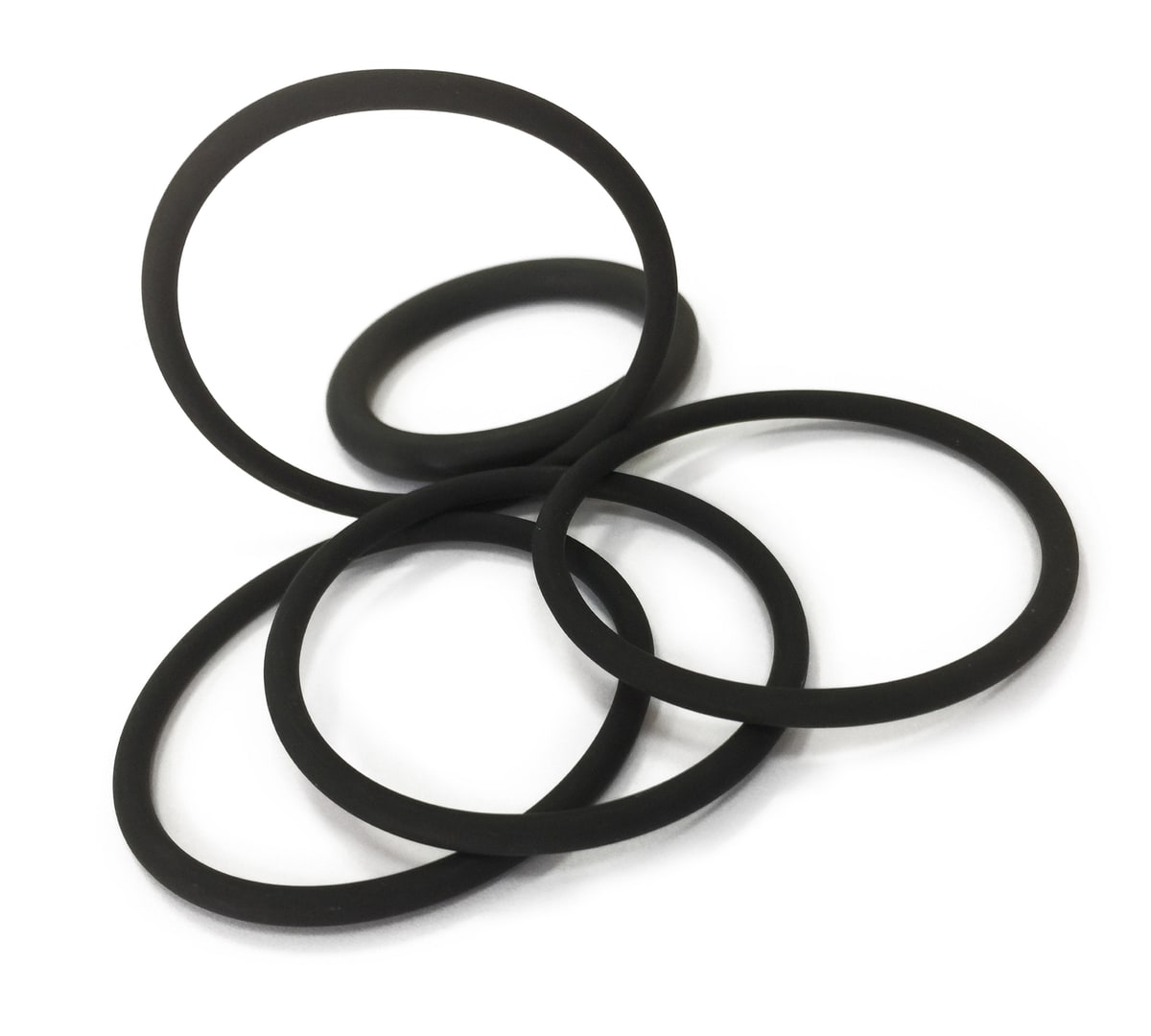

FFKM O-rings are seals made from perfluoroelastomer, a highly fluorinated elastomer family selected for demanding chemical and thermal environments. They combine elastic sealing behavior with broad resistance to many aggressive process fluids.
FFKM is a material classification, not a single compound or performance rating. Suitability depends on the proposed compound, operating conditions and seal design. Broad chemical resistance does not mean resistance to every chemical or suitability for every sealing application.
02 / FFKM SELECTION
FFKM may be worth considering when conventional FKM or another elastomer cannot adequately withstand the process media, temperature or combined exposure.
Reasons for a review include material degradation after contact with solvents or cleaning agents, leakage during thermal cycling, or a requirement to seal several process fluids with one material.
The required properties may differ: chemical stability for mixed solvents, resistance to hot water or steam, elastic recovery after prolonged compression, or controlled contamination in a sensitive process. One FFKM compound should not be assumed to satisfy all these requirements.
A higher material specification does not automatically solve a sealing problem. Incorrect squeeze, excessive clearance, installation damage or unsuitable dynamic operation may also need attention. Selection should balance application needs, material properties, cost and supply feasibility.
03 / FFKM SELECTION
Temperature and chemical exposure need to be evaluated together. A temperature rating established in hot air does not establish suitability at the same temperature in steam, hot water, solvents or mixed process fluids.
Provide the exact media, concentration and mixtures, including cleaning agents and fluids encountered during start-up, shutdown or maintenance. Continuous temperature, short-term peaks, exposure duration and thermal cycling all affect the review.
Some FFKM compounds are better suited to particular chemical or thermal environments than others. Strong dry-heat performance does not automatically establish steam resistance. Hot aqueous media, amines, strongly oxidizing conditions and fluorinated fluids require particular attention.
Chemical compatibility guides can help identify candidates, but they do not establish final suitability. Relevant material documentation and, where necessary, evaluation under representative service conditions should support the selection.
04 / FFKM SELECTION
Customers may specify black or white FFKM for identification, an existing material specification, visual inspection or concerns about contamination in the process.
Clarify whether the requirement concerns appearance, visible particles, extractables or a defined cleanliness specification. These are different requirements and cannot be established by color alone.
Black FFKM compounds commonly contain carbon black, while white compounds may use non-black fillers. Changes in fillers and the complete formulation can affect hardness, strength, elastic recovery and chemical compatibility.
White is not automatically cleaner, and black does not automatically provide better mechanical performance. Compare relevant compound data under stated test conditions rather than relying on a general color ranking.
Color does not establish food-contact compliance, semiconductor suitability, low extractables or resistance to a particular plasma environment.
In bulk white FFKM, the color is part of the compound throughout the seal. A white surface coating is applied over an underlying elastomer, which may be a different material. The coating and base material must both be considered when evaluating chemical compatibility, wear and sealing performance.
These constructions should not be treated as equivalent. A coating can wear or become damaged, changing its appearance and surface behavior. Bulk white FFKM can also wear, discolor or release particles; it is not a zero-particle solution.
Review the actual media, temperature, movement, contact surfaces and contamination requirements before choosing either construction.
05 / FFKM SELECTION
Initial compression helps establish sealing contact. O-ring dimensions, groove geometry and component tolerances must provide suitable squeeze and sufficient space throughout operation.
Thermal expansion and chemical swelling can increase the volume occupied by the seal. A groove that works at room temperature may become overfilled under operating conditions. Excessive compression can also increase assembly difficulty and mechanical stress.
When replacing another elastomer with FFKM, review the existing gland rather than assuming the same dimensions remain suitable.
Pressure, clearance, temperature and the compound’s mechanical properties influence extrusion risk. Component deflection, eccentricity and pressure cycling can change the effective gap during service.
Where needed, review clearance control and anti-extrusion support alongside the O-ring. Chemical resistance alone does not establish pressure capability.
Dynamic applications require additional consideration of friction, wear, motion type and speed, lubrication, surface finish and frictional heating.
FFKM should not be assumed suitable for every moving seal. Installation access, sharp edges and excessive stretching also need review to reduce the risk of damage before service.
06 / FFKM SELECTION
An O-ring may retain deformation after prolonged compression and recover less effectively when conditions change. Compression set can contribute to leakage, but its laboratory test value is not a direct measurement of remaining sealing force or service life. A seal can leak without obvious visible damage.
Changes in dimensions, hardness or flexibility may indicate that chemical or thermal exposure has altered the material. Review the media, cleaning sequence and temperature history before attributing the problem to one cause.
Localized material loss near a clearance gap may be associated with pressure, excessive clearance or insufficient mechanical support. Temperature and component movement can contribute.
Rubbing, repeated motion, rough surfaces or installation damage may affect sealing performance and generate debris. A chemically resistant material can still suffer mechanical damage.
Appearance provides clues, not a complete diagnosis. Share photographs together with operating history, gland information and the circumstances in which leakage occurs.
07 / FFKM SELECTION
FFKM may be considered where aggressive fluids, mixed process streams or cleaning exposure challenge conventional elastomers.
Review media compatibility together with temperature, pressure cycling and seal geometry. In pumps and valve assemblies, identify whether the O-ring remains static or experiences movement; the equipment name alone does not define the sealing conditions.
Paints, colorants and cleaning fluids can expose seals to different solvents and mixtures. Material selection should consider both the product being dispensed and the full cleaning sequence.
Where color identification or contamination is important, clarify whether the requirement is for bulk white material or a white surface coating. Review wear, visible particles and any defined contamination limits alongside chemical compatibility.
For pump and valve seals, provide the motion, contact surfaces, pressure and cleaning conditions. White FFKM may be a candidate for evaluation, but color alone does not establish compatibility or contamination performance.
Selected FFKM compounds may be considered for hot-water, steam or repeated cleaning exposure. Selection must address the complete temperature cycle, cleaning chemistry and elastic sealing requirements.
For food or pharmaceutical contact, the specific formulation, intended use and required supporting documents must be reviewed separately. Neither FFKM classification nor a white appearance establishes compliance.
FFKM may be considered where process chemistry and sealing stability are demanding. For contamination-sensitive instruments, specify any extractables, particle or background-interference requirements rather than relying on color as a proxy for cleanliness.
These are application directions, not customer case studies or guarantees of suitability.
08 / FFKM SELECTION
Share the current compound or part reference, dimensions and service conditions. Let us know whether the seal is performing satisfactorily or why a replacement is needed.
We use the existing specification as the starting point. A proposed alternative is reviewed against the stated requirements—not assumed equivalent because it is also FFKM.
For a custom requirement, provide the drawing, inside diameter, cross-section, units and specified tolerances. Include the required material specification, quantity and inspection or documentation requirements.
For white FFKM requirements, FLUID can review the intended application, available compound options, dimensions and documentation needs before confirming a suitable supply solution.
If color matters, explain its purpose and whether a coating is permitted. Any cleanliness or contamination requirement should be defined separately.
FLUID supports custom O-ring manufacturing, material selection and seal design review. Supply feasibility and required documentation are reviewed against the project requirements before ordering.
09 / REVIEW
Drawing, dimensions, sample information or part reference.
Existing material or compound specification, if known.
Process media, concentration, mixtures and cleaning exposure.
Continuous and peak temperatures, exposure duration and thermal cycles.
Pressure, pressure changes and static or dynamic operation.
Gland geometry, clearances and mating surface information.
Color, coating and contamination requirements, where relevant.
Leakage, damage or replacement history.
Quantity and required material or inspection documents.
You do not need a complete specification to begin.
10 / RELATED PATHS
11 / TECHNICAL REVIEW FAQ
No. FFKM may be worth considering when chemical or thermal exposure exceeds the suitability of the proposed FKM compound. Mechanical requirements, seal design, cost and supply conditions still matter. FKM or another material may remain appropriate.
Not automatically. Resistance to hot air, steam and individual chemicals can differ. Evaluate the specific compound against the full temperature cycle, media, concentration and exposure duration.
Not necessarily. Color does not establish particle generation, extractables, compliance or mechanical performance. Compare the complete compounds against the application requirements, and distinguish bulk white material from a white surface coating.
Matching dimensions is not enough to establish suitability. Review the material requirements, squeeze, gland fill, thermal expansion, possible chemical swelling and extrusion clearance. Another FFKM compound is not automatically equivalent to the original either.
Some applications may be suitable, but dynamic use requires a separate review of the compound, motion, friction, wear, lubrication, pressure and contact surfaces. Chemical resistance alone does not demonstrate dynamic sealing capability.
