SPECIALTY O-RINGS
FLUID supplies FEP/PFA encapsulated O-rings and supports jacket and core selection, dimensional confirmation and application review. Share your drawing, existing specification or operating conditions to clarify the requirements for your project.
Initial response within 12 hours.
01 / ENCAPSULATED O-RING REQUIREMENTS

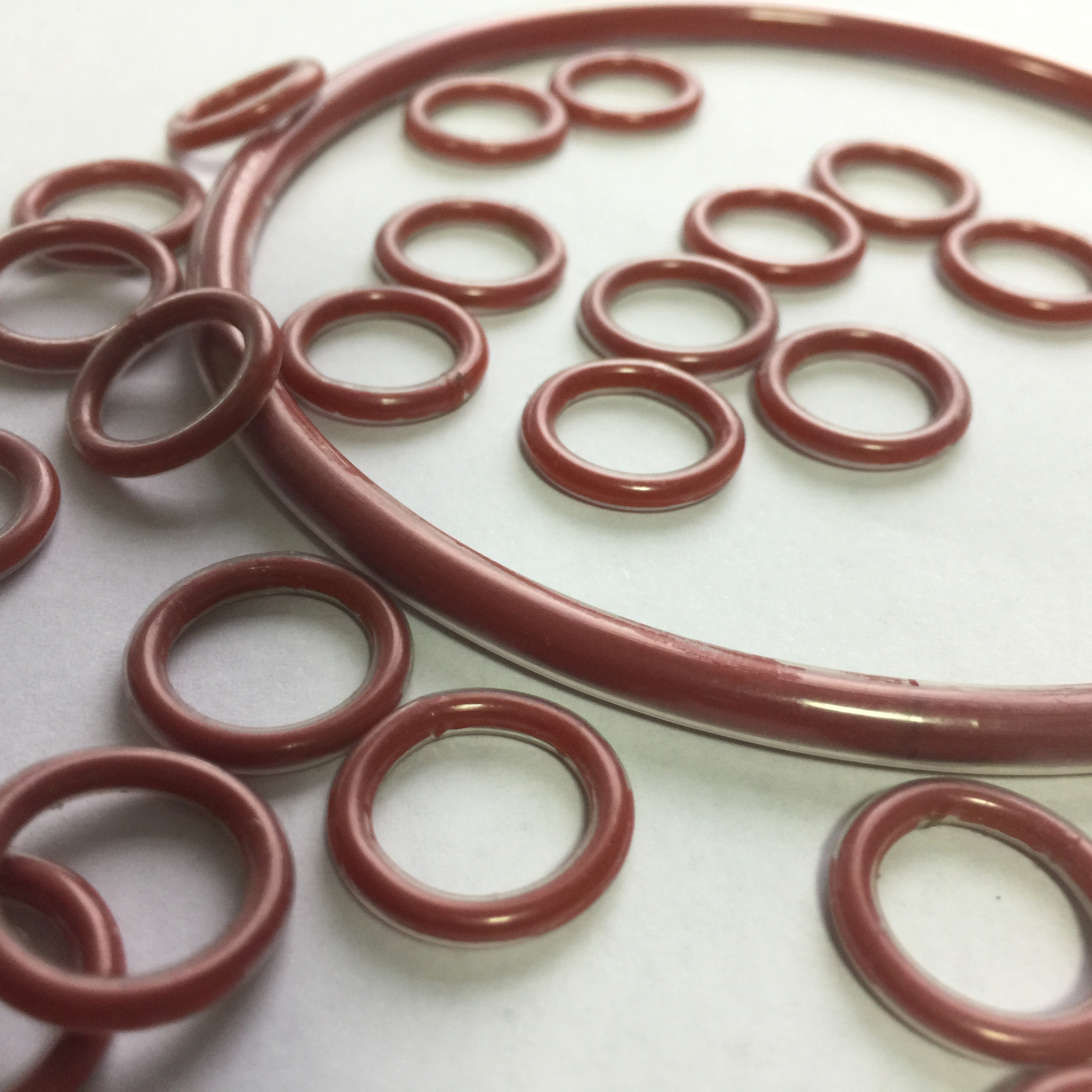

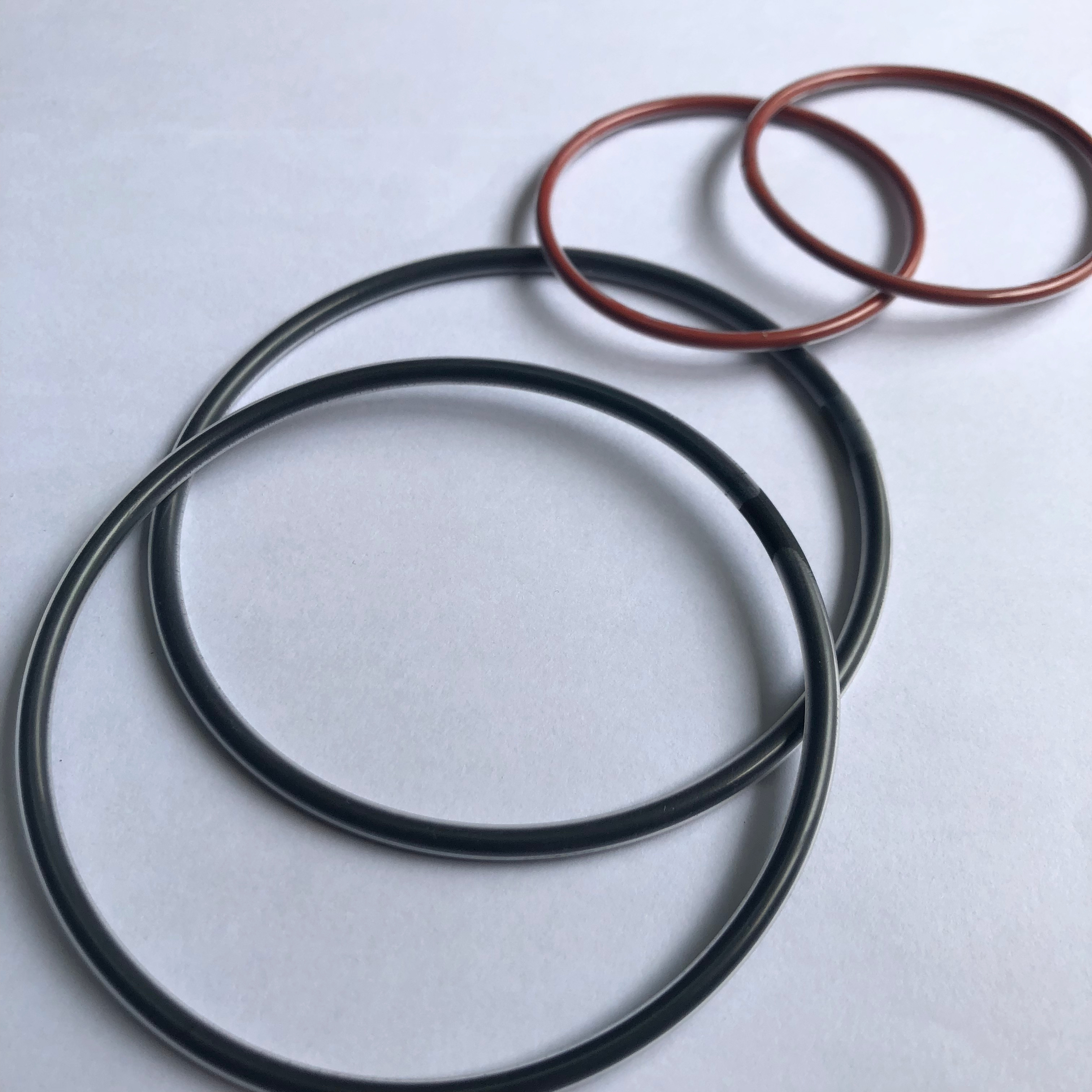

An encapsulated O-ring combines an FEP or PFA fluoropolymer jacket with an elastomeric core. The jacket forms the surface in contact with the process media, while the core provides elastic support and sealing contact force.
This construction differs from a solid PTFE O-ring and from a rubber O-ring with a thin surface coating. The jacket, core and application must be considered together.
FEP and PFA have different thermal and mechanical characteristics. PFA may be considered where greater thermal capability is required, but this does not establish the operating temperature of the complete O-ring. Select the jacket for the media, temperature and installation conditions; FEP and PFA are not interchangeable specifications.
FKM and silicone (VMQ) are common core materials. The specific compound affects elastic recovery, compression response and performance at high or low temperatures. The core must also be assessed against media that may permeate the jacket. Available combinations are confirmed for each project.
A hollow core may reduce the force needed to compress the seal in some applications, but lower compression force does not automatically mean better sealing. Review the required contact force, gland geometry and operating conditions. Availability depends on the material combination and dimensions.
Provide the current jacket and core specification, dimensions and reason for replacement. An encapsulated O-ring is not automatically a direct replacement for an ordinary elastomer O-ring. The existing gland, assembly method and service conditions require review.
02 / ENCAPSULATED O-RING REQUIREMENTS
Chemical compatibility depends on the exact media and exposure conditions. The jacket is not resistant to every chemical and is not completely impermeable. Permeation can expose the core to media that affect its performance. Include media names, concentrations, mixtures and cleaning agents, and consider jacket integrity and the consequences of damage.
The operating temperature of the complete seal depends on the jacket, core and application. A fluoropolymer material’s temperature capability alone is not a rating for the finished O-ring. Review continuous operation, short exposures and temperature cycling separately, including duration, frequency and low-temperature start-up. Confirm numerical limits for the proposed combination and service conditions.
03 / ENCAPSULATED O-RING REQUIREMENTS
Appropriately designed static seals are the main application direction. Potential applications for review include process flanges, valve assemblies and pump connections. Slow-moving dynamic service requires separate assessment of motion, contact surfaces, lubrication and jacket wear. High-speed movement and abrasive media should not be assumed suitable.
Pressure capability cannot be established from the jacket material or O-ring size alone. Review pressure, clearances, compression, tolerances and the force available to close the assembly. The jacket changes flexibility and compression response compared with an ordinary elastomer O-ring; an existing rubber O-ring gland or compression specification is not automatically suitable.
Excessive stretching and sharp edges can damage the jacket. Check the assembly path, including threads, shafts or shoulders, together with gland accessibility and contact surface condition. Confirm installation instructions for the selected construction and dimensions rather than applying a general stretching or heating procedure.
04 / REVIEW
You do not need a complete specification to begin.
Drawing, inside diameter, cross-section, units and tolerances, or an existing size designation.
FEP or PFA jacket, core material, and solid or hollow core requirements, if specified.
Gland geometry, assembly route and any stretching needed during installation.
Media, concentrations, cleaning agents, pressure, operating temperatures and exposure duration.
Static or dynamic operation, existing part reference, service history and any leakage or jacket damage.
Required quantity and any material traceability or inspection documents needed, for project-specific confirmation.
05 / RELATED PATHS
06 / TECHNICAL REVIEW FAQ
Start with the media, temperature and installation conditions. Their thermal and mechanical characteristics differ, and PFA may be considered for greater thermal capability. The core and complete seal construction must still be reviewed; the jacket alone does not determine suitability.
Compare the specific compounds against the required recovery, compression response and temperature conditions. Also consider media that may permeate the jacket. Neither material is the best choice for every application, and the proposed combination must be confirmed for the project.
Not automatically. The jacket changes flexibility, compression response and installation requirements. Review the gland, assembly route and operating conditions before confirming a replacement.
Static sealing is the main application direction. Slow-moving dynamic service requires a separate review of motion, surfaces, lubrication and jacket wear. Dynamic suitability is not a general product guarantee.
There is no single operating range for every FEP/PFA encapsulated O-ring. The jacket, core compound and service conditions determine the applicable limits. Provide continuous and short-term temperatures, exposure duration and cycling requirements so the proposed combination can be reviewed.
Yes. Send the size designation or a drawing with inside diameter, cross-section and tolerances. Supply feasibility is confirmed for the required jacket, core, dimensions and quantity. A familiar size designation does not by itself confirm gland suitability or stock availability.
A hollow core may be considered where lower compression force is important. It does not automatically improve sealing. Review the available closing force, gland geometry and operating conditions, with the actual construction confirmed for the project.
NEXT STEP
Send your drawing, existing specification or the information currently available. FLUID can help clarify jacket and core options, dimensional requirements, installation concerns and the next information needed for a supply and application review.
Initial response within 12 hours.
